Tanglefoot Moonshiner 29+ SWORD Build

You've landed on the Moonshiner Microshift SWORD 29+ build, with 29 x 3" tires. Ideal for rough terrain where speed is the need.

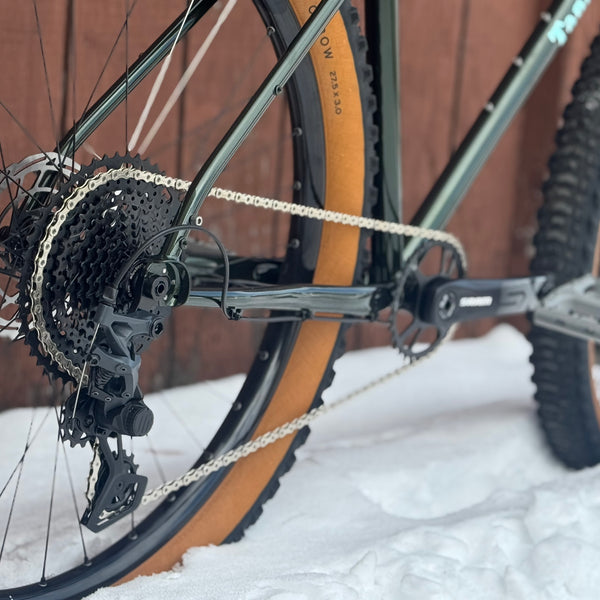

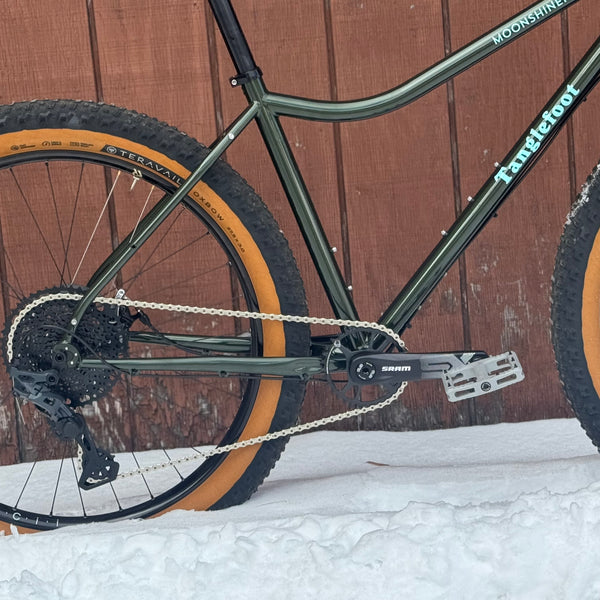

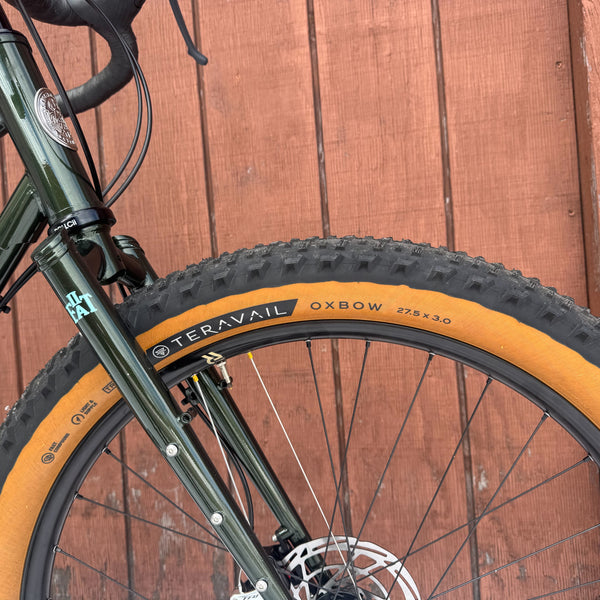

Quick note: We don't have pics of this build up yet.  The bike in the pictures is similar but not identical. The parts list below is accurate and indicative of what you will get!

Shred singletrack, devour class 4 roads like they're double stuffed oreos, and conquer epic tours without the custom price tag.  Dig the Tanglefoot Moonshiner 29+ Microshift SWORD 10 speed build. A delectable offering of components that rides like a moist dream and saves you serious dough compared to a full custom build.  This whip is stuffed with solid parts we love and trust, from the buttery-smooth Bitex hubs laced to Velocity Blunt rims to smooth stopping and hyper adjustable TRP Spyre brakes.

SWORD is Microshift's bike packing groupset, including ergonomic 10 speed levers, a clutch rear mech and a wide 11-48 rear gear spread.  We round out the kit not with generic cranks and questionable bottom brackets, but with a fully nickel plated chain from PYC (who makes chains for the big guys), a SRAM SX Dub crankset and SRAM BB, and super slick stainless cables.

The stock Moonshiner comes with tubes, unless you choose to upgrade to a tubeless set up, but if you start with tubes and wanna go tubeless down the road, all you need are valves and sealant.

Sort out your size:

• Grab a buddy and measure your pubic bone height (seriously, this is key!). Do it three times, take the highest number, and slap it in the order comments with your desired bar height (level with saddle, 1" higher, or 2" higher for that relaxed touring vibe).

• Extra Small Frameset:  76cm to 78cm PBH, rider height from 4'11" to 5'4".

• Small frameset:  77-80cm PBH, rider height 5'4" to 5'8".


• Medium Frameset:  80cm to 84cm PBH, rider height 5'8 to 5'11".

• Large Frameset: 84cm to 87cm PBH, rider height between 5'11 and 6'1.

• Extra Large:  88-98 PBH,  Riders between 6'2 and 6'8".

We hand-build every Tanglefoot Moonshiner in our Vermont workshop.  Expect a 30-day turnaround or less, then bam, your new two-wheeled BFF is ready to ship and rip. Shipping is a snap with Bikeflights and full insurance, and your bike will arrive fresh from a test ride, cables nestled in like cozy wee kittens. You just gotta pop on the pedals, bars (pre-wrapped and tilted to perfection, mind you), slap on the front wheel, and bolt those rotors. Slow pokes: this build takes 90 minutes, but quick types can have it ready in 20.  We'll bill the shipping after we build and box and weigh the bike.  It will come as a separate invoice.  You are of course encouraged to come pick the bike up in person at Analog! The system will automatically bill you something for shipping.  We'll invoice you for whatever the difference is.

Frameset:  Tanglefoot Moonshiner frame and fork

Headset:  Rollcii stainless angular contact sealed bearing

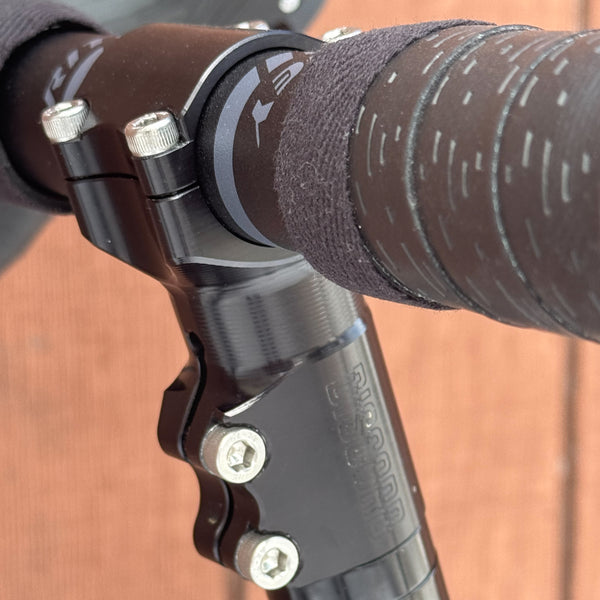

Stem:  Discord Creemee Aluminum, Black

Bars.  Ritchey Beacon Comp Dirt Drop Handlebars(40cm on XS, 42cm on Small, 44cm on Medium and Large, 46cm on XL)

Bar Tape: Fizik Tempo Soft Touch Black

Bar Gel:  Spank or Green Gel

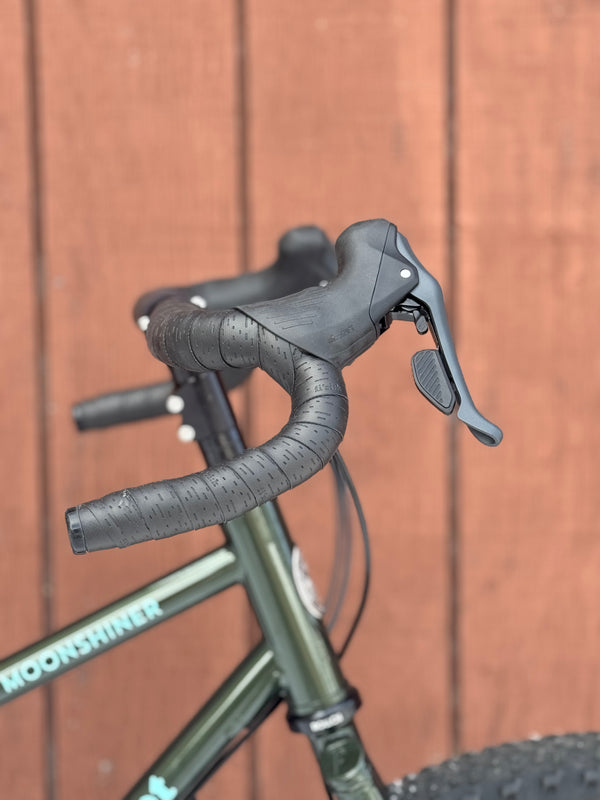

Left Brake Lever:  Microshift SWORD

Right Brifter: Micoshift SWORD 10 speed

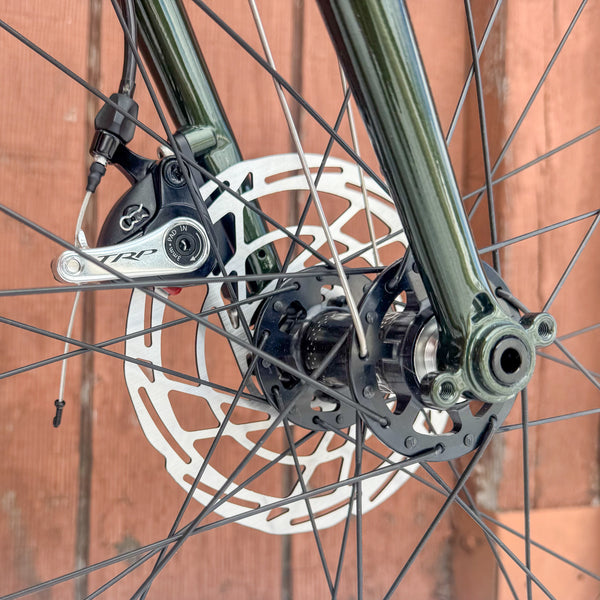

Brakes:  TRP Spyre Flat Mount, 180mm rotors.  Discord 180mm Flat mount adapter

Seatpost:  Readymade Alloy 2 bolt Micro adjustable

Saddle:  WTB Pure Steel Rail, Black

Seat collar:  Readymade

Crankset: SRAM SX Dub spindle 32t Boost

Bottom Bracket: SRAM Dub

Pedals: Deity Deftrap, Black

Chain:  PYC fully nickel plated with quick link

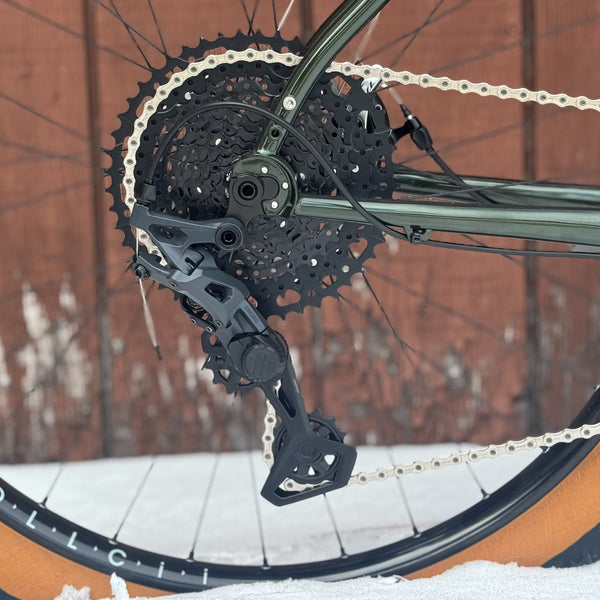

Rear Derailleur:  Microshift SWORD

Cassette:  11-48 Microshift with alloy cog carrier

Hubs:  Velocity branded Bitex 6 bolt 110 x 15 and 148mm x 12.

Spokes:  Butted stainless

Rims:  Velocity Blunt 35 with tubeless Tape

Tires:  WTB Ranger 29 x 3 Tubeless Ready Black with Black sidewalls

Tubes:  Teravail or Kenda or whatever is handy.

Want to customize the headset, pedal, seat collar or bar tape color?  We can do that for no upcharge, as long as the color is available.  We can also do a tubeless conversion for $32 dollars, add anodized water bottle cage bolts, and of course add racks, bottle cages and all of that.  Just let us know what you're after and we'll set up an invoice for you.  If you just want the bike as is, order away!
